3 to 1 solar branching connector
3 to 1
Description:
3 to 1 MC4 branching connector either called 3 in 1 PV branch connector was used to combine three solar panels together in parallel or three series strings of solar panels into a series-parallel during solar photovoltaic cable deployment for the ground-mounted solar grid systems.

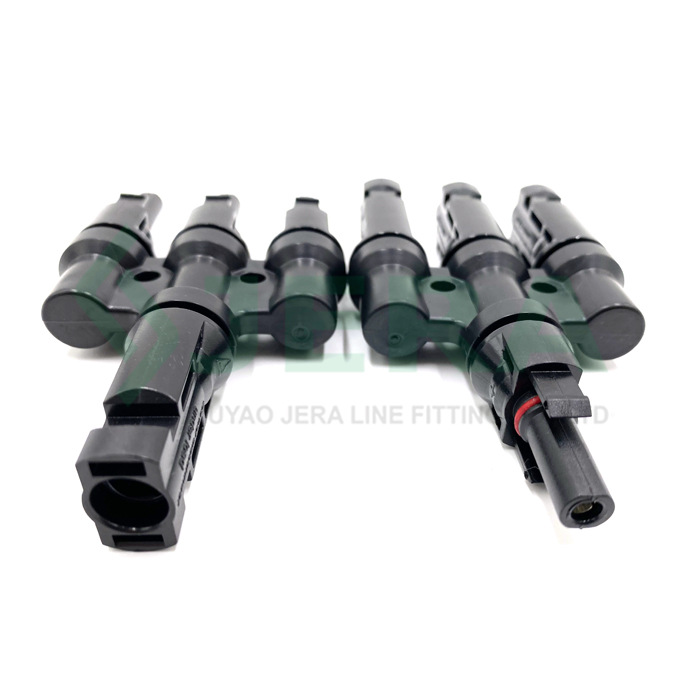

The MC4 T branch parallel connector is contain 2 parts, one is 3 Male 1 Female(MMMF) plus one Female 1 Male(FFFM) for 3 solar panel parallel connection.
- Rated Current : 30A
- Rated Voltage : 1000V/1500V DC
- Test Voltage : 6KV(50Hz,1Min)
- Contact Material : Copper, Tin plated
- Insulation Material : PPO
- Contact Resistance : <1mΩ
- Waterproof Protection : IP67
- Ambient Temperature : -40℃~100℃
- Flame Class : UL94-V0
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Simple, safe, quick effective field installation
- High density rubber ring IP67 waterproof grade
- High-quality PPO material, heat and weather resistant
- Self-locking design MC compatible connection
- Copper with tin plated contact material
- Many plugging/unplugging cycles
- High current and voltage carrying capacity
- Stable performance during long period application
- Weather resistant, durable
- Fair price
SPECIFICATION
3 to 1 MC4 branching connector either called 3 in 1 PV branch connector was used to combine three solar panels together in parallel or three series strings of solar panels into a series-parallel during solar photovoltaic cable deployment for the ground-mounted solar grid systems.
The MC4 T branch parallel connector is contain 2 parts, one is 3 Male 1 Female(MMMF) plus one Female 1 Male(FFFM) for 3 solar panel parallel connection.
APPLICATION

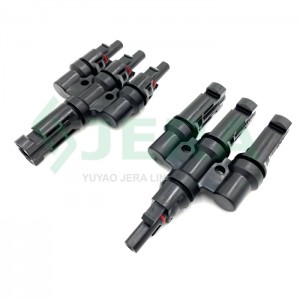

3-1 MC4 parallel branch connector is made of high mechanical strength UV resistant plastic, heat and corrosion resistant. The metal used in connector is made of high quality copper with tin plated which guarantee reliable electrical contact.
MC4 type branch connector provide a quick and easy way to connector and branch solar power from 3 solar panels, widely used in solar power farms or solar power plants.
Jera solar connector factory is operating according to ISO9001. We have our own laboratory to proceed a series test accordance with European quality inspection standards (EN 50483-4, and IEC 61238-1), such as Underwater dielectric testing, Electrical aging test, UV & temperature aging test，Corrosion aging test, Temperature & humidity cycling test etc.
Welcome to contact us for more information about this 3 to 1 MC4 branching connector price.
Manufacturing
Watch Our Factory Video
Technical specification
| Rated Current | 30A |
| Rated Voltage | 1000V/1500V DC |
| Test Voltage | 6KV(50Hz,1Min) |
| Contact Material | Copper, Tin plated |
| Insulation Material | PPO |
| Contact Resistance | <1mΩ |
| Waterproof Protection | IP67 |
| Ambient Temperature | -40℃~100℃ |
| Flame Class | UL94-V0 |
PRODUCT VIDEO
our advantages
- JERA LINE is a factory, that produces overhead and underground cable infrastructure.
Which transmits electricity and information,via
-Of f Grid Soar Plants.
– Fiber Optic Cable Networks.
- In following catalog we present PV Cable Harness System for Medium & Large Scale Off Grid Solar Plants.
- JERA is operating according to lS09001, all our products meet the criteria of key regional standards, EN50483-4,IEC-61238-1,NFC 33020,UL 94.
- Welcome to cooperate, our intention is committed to build reliable, long-term business relationships.
Factory picture
ss
Plastic molding workshop
CNC metals workshop
Press forming workshop
Mold processing workshop
Helical wire Forming workshop
Products Assembly workshop
TESTING FACILITY
Under water aging test
Electrical aging test
Temp & Humi cycling test
UV & temperature test
Tensile strength test
Fire resistance test
FAQ
-
1. What area are you in?
We are the factory, located in China, busy in production of cable infrastructure products. One of our solution is PV Cable Harness System for Solar Farms, large and medium scale.
-
2. Are you the direct manufacturer?
Yes, we are direct factory with years of experience.
-
3. Where is your factory located?
Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.
-
4. Why I should choose Jera Line?
- We have production experience from 2012.
- Our products are qualified by EN NFC 3rd party type test reports.
- We have the stable quality control onsite system.
- After sales product guarantee and support.
- You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
- We are committed to long term refashions based on trust.
- We have competitive price. -
5. Why you can offer competitive prices?
Because we the direct factory located in China
-
6. Why can you offer stable quality?
Because we have quality system. On site laboratory and engineering team.
-
7. Do you offer a guarantee on your products?
Yes, we provide product guarantee.
-
8. What are the main products that you produce?
We produce connectors, PV cable harnesses for PV Cable Harness System for Medium & Large Scale Off Grid Solar Plants, constantly developing new products.
-
9. What's your trade term and payment terms?
We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.
-
10. Can you produce OEM orders?
Yes, we can. Can customize the product itself, model, or just a packaging design, brand naming, etc. upon requirements.
-
11. Can you offer me product’s Customization and R & D?
Yes, we have RnD and Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.
-
12. What's your MOQ of new customers?
Negotiable MOQ, depending or project.
-
13. Can you provide free samples?
Yes, we provide samples.
-
14. Will the quality of ordered products be the same to the sample what I have confirmed?
Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.
-
15. Where can I see yours’ products application?
Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t
-
16. How to get in touch with you?
Via email:info@jera-solar.com
-
17. Where can I download your latest catalog
Here you can do it:
Contact Us – YUYAO JERA LINE FITTING CO., LTD. (jera-solar.com)
-
18. Do you have global experience?
Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends
